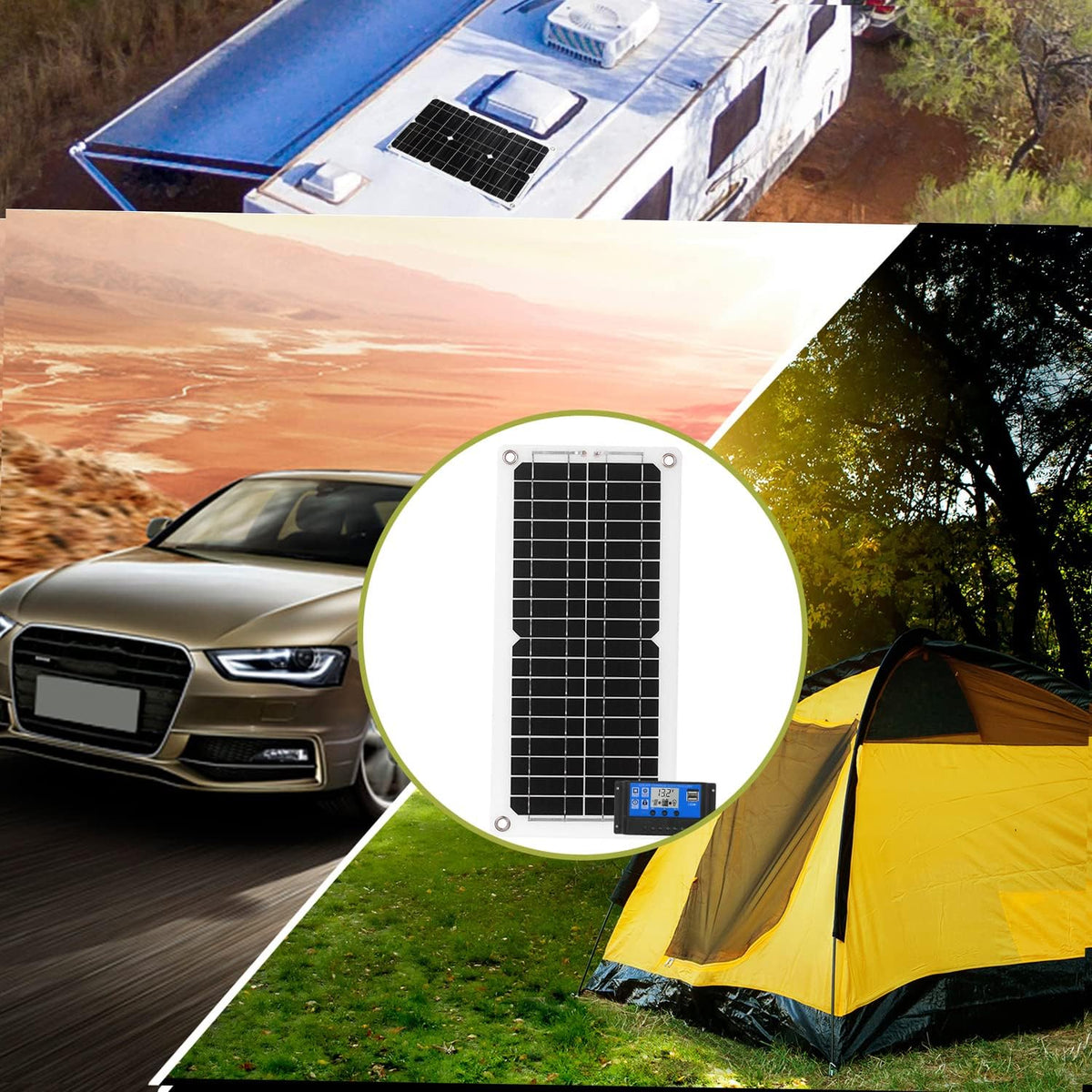

12 W Monocrystalline Solar Panel Kit with Controller Pack of 2 C918419
12 W Monocrystalline Solar Panel Kit with Controller Pack of 2 C918419
【High Conversion Efficiency】With high efficiency monocrystalline solar cell, you will get greater power efficiency even though the panel is smaller than a traditional model.Maximizes system output by reducing mismatch loss.
【Full-automatic Intelligent Controller】The solar controller 12V/24V/48V (Auto) .The solar controller is equipped with all necessary protections devices, the control parameters of the system are adjustable.
【Solar Panel Kit】The 12W solar charging panel adopts monocrystalline solar panels and environmentally friendly PET film, with advanced IP65 waterproof and dustproof rating, comprehensive protection against environmental particles and low pressure water jets, safe to use and long service life.
【Plug and Play & Longevity】Built USB port in the solar panel, come with 4 kinds charing cable, fit most kinds of device, plug and play, avoide out unexpected off power. Easy to install with pre-drilled holes on the back of panels for fast mounting and securing.
【Wide Application】Widely applied to off grid 5/12 Volt battery charging system and a variety of DC applications, including caravan, RV, car, boat, green house, marine, dry camping, garden watering, shed, cabin, gate opener, etc.
The 12W Solar Starter Kit charge with DC 5V/12V output and IP65 water resistance. The Starter Kit is great for off-grid applications, such as RVs, trailers, boats, sheds, and cabins. With a controller to control the batterys voltage and turn on the circuit. Adding a polycrystalline or monocrystalline solar panel kit can extend your travels further than ever before.
Specifications:
Types: 2 types (optional)
type 1: 12W solar panel single USB port
type 2: 12W solar panel single USB port + controller
Material: EVA+PET
Color: black & white
Panel: monocrystalline solar panel
Powers: 12W (max.)
DC Output: 5V
USB Output: 12V
Transformation efficiency: 20%
Proof rate: IP65
Panel size: 430 * 203 mm / 16.9 * 8.0 in
Controller
Material: ABS
Color: black & blue
voltage: 12V/24V/48V (auto)
Charging Current: 10-100A
Output Current: 10-100A
Max Solar input: ＜50V
Floating charge voltage: 13.7V (defaul, adjustable)
Discharge stop voltage: 10.7V (defaul, adjustable)
Discharge reconnect voltage: 12.6V (defaul, adjustable)
USB output: 5V USB ports
Operating temperature: -35℃ to 60℃
Item weight: 128g / 4.52oz
Item size: 133 * 70 * 31mm / 5.5 * 2.76 * 1.22in
Package Infor.
Package with contoller weight: 750g / 26.5oz
Package without contoller weight: 610g / 21.5oz
Package size: 440 * 215 * 40mm / 17.3 * 8.5 * 1.6in
Package List:
1 * Solar Panel
1 * Controller
1 * Car Charge Cable
1 * Cable with Clip
1 * DC Charging Cable
1 * DC Charging Cable Adapter
